Jack 1x10 Piezo Deluxe Kit
1 of 3

Jack 1x10 Piezo Deluxe Kit

Xover 2k Pz 8ohm 200w
Parts Only 200w version (+ USD $15.95)
Prebuilt on PC Board 200w version (+ USD $44.95)
Xover 2k Pz 8ohm 500w
Parts Only 500w version (+ USD $22.95)
Prebuilt on PC Board 500w version (+ USD $48.95)
Handles
Strap Handles
7154K Folding Handles (+ USD $17.58)
no handles
Price: USD $178.83
Quantity:
  • Description
  • Specifications
  • Kit Contents
  • Response Graphs
  • Related Items



Jack 10 is a 'Jack of All Trades' speaker line: small, versatile, light

  • It can be built as an old-school woofer only electric bass cab.
  • It can be built as a modern full range bass or keyboard cab. It cab be built with one or two woofers.
  • It can be used as a PA top along with subs, it can be used as a full range PA without subs.
  • It can be outfitted with a 120 degree dispersion melded tweeter array, or a vertically aligned compression driver loaded high frequency diffraction horn.
  • It can be used one per side for small room PA needs, it can be vertically stacked in a line array for thousand seat venues.
  • If maximum versatility is what you need from a speaker of minimum size and weight, not to mention cost, Jack 10 is the cab you want.



Complete details and plans are available from



  • Dispersion with Piezo melded arrays:        120 degrees
  • Dispersion with  Diffraction Comp Horn: 100 Degrees
  • Power handling: Driver dependent. See options in drop down box for driver selection
  • Response:  60-18k
  • Dimensions: 16in x 19in x 15in
  • Weight: Approx 30-35lbs, dependent on driver and hardware.
  • Jack10 Lite Weight:  Approx 20-25lbs, dependent on driver and hardware.

Complete details and plans are available from

Jack 10 Deluxe Piezo Kit:

  • Choose from 3 Eminence Speaker
  • Goldwood GT1016 Piezo tweeters
  • All the crossovers, parts only or custom built by SpeakerHardware technicians
  • 8 Protective corners, choose from Small Chevrons, or 1824 Metal Corners Black or Chrome
  • 3 Styles of handles available.
  • 1 Dish with connectors, gasket, (except D023K), all the jacks, screws and bolts, 4 styles
  • 1 tube PL Premium Polyurethane Adhesive
  • 5 ft connector wire
  • 10 ft gasket tape
  • Every screw, nut, bolt, and washer required for construction in the correct quantities
    to build the cab.
  • BFM badge to put on your cab to show your pride

1 1/2 Acoustic Eggcrate Foam
Duratex Roller Grade Gal Black

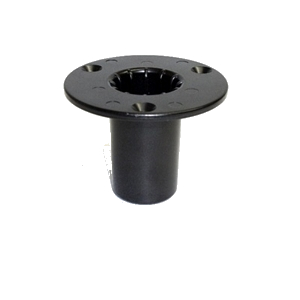

Hat 1 3/8 Cast
Hat 1 3/8 Cast
Price: USD $10.49
