Bill Fitzmaurice Designs David Floorstand Speaker Kit

Designer Notes

What do you get when you combine a Tuba sub with a high sensitivity MTM?
David

A mid-sized (48x15x15 inch) floor-stander, David, like his namesake, takes on and defeats speakers
that are much larger, not to mention a lot more expensive.
With average sensitivity of 95dB/2.83v/1 meter this is one powerful speaker,

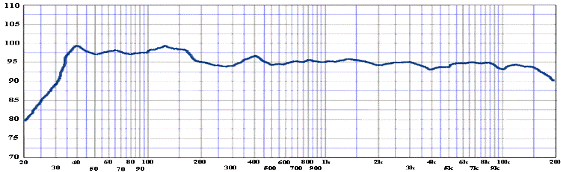

and with response of plus/minus 2.5dB from 38Hz to 16kHz it's also very accurate.
In room the bass response extends to below 30Hz.

• The premium driver version of the outstanding David design
• High efficiency smooth Faital 5FE120 midrange
• The venerated Morel Tweeter
• Dayton woofer in a powerful 30hz horn loaded subwoofer
• Premium crossover components
• Dynamic sound, effortless bass, efficiency with accuracy, make the premium David the choice to light up your listening
• Get the plans available from the link below before ordering

Complete details and plans are required from

Kit Contents

David Tower Premium Speaker Driver Kit

• Morel CAT 378 1-1/8" Soft Dome Horn Tweeter
• Faital 5FE120 5" Fullrange Speakers
• Dayton Audio DCS205-4 Woofer
• Solen Capacitors in signal path.  1 electrolytic shunt paralled with a Poly to make a large value.
• Erse Coils
• Gold Binding Posts
• 1 Tube PL Construction Adhesive
